Beyond the Breaker: The Complete Homeowner’s Guide to Electrical‑Panel Upgrades in Riverside, CA

“Do you have more devices plugged in today than 40 years ago?

 If the answer’s yes, it’s time to upgrade.”

 —Actual homeowner, Riverside

Why This Article Matters

Most blogs on “panel upgrades” skim the surface. This one dives deeper—combining Riverside‑specific permit rules, fire‑risk data, and a real‑life case study (my own) to help you decide when, why, and how to modernize the heart of your home’s power system.

---

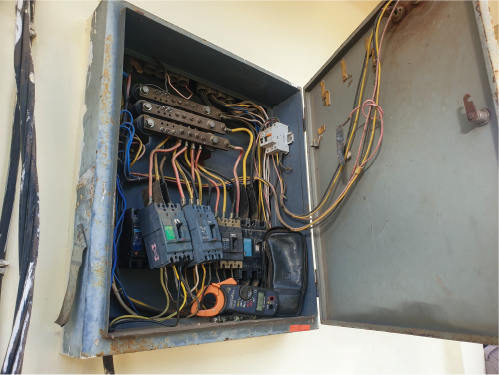

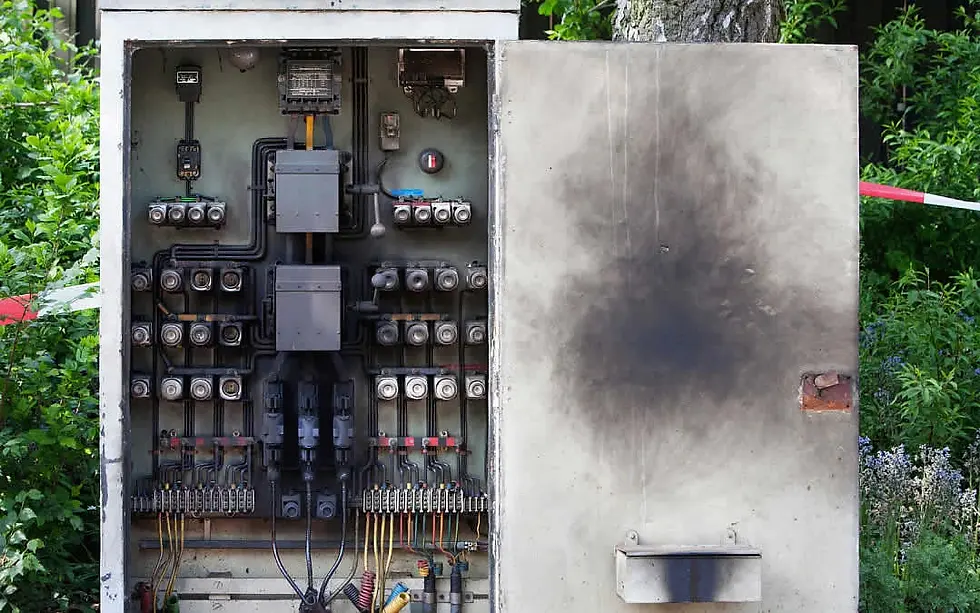

1 | The Hidden Dangers Lurking in Your Gray Box

Outdated panels = insurance red flags and fire hazards.

• Older brands such as Federal Pacific or Zinsco have been linked to higher failure rates that can void coverage or spike premiums.citeturn0search1




• Recalled or overloaded gear is a top driver of residential electrical fires statewide.citeturn0search5




Why the risk is rising: California homes are electrifying—induction ranges, heat‑pump HVACs, EV chargers, rooftop solar back‑feeding amperage the original builder never imagined. A 100‑amp panel from the 1970s was designed for a few incandescent bulbs and a single refrigerator, not a smart‑home ecosystem.

---

2 | Signs Your Panel Is Begging for Retirement

Symptom	What It Means
Lights dim when A/C or microwave starts	Main bus & breakers at capacity
Warm or buzzing breaker slots	Loose connections = arc‑flash risk
Frequent trips or fuses blowing	Undersized circuits for today’s loads
No open breaker space	Zero room for EV, spa, or solar
Panel older than 25–30 years	Usually fails today’s code and insurer checklists

---

3 | Riverside County Rules: Permits, Inspections, and Amp Choices

Upgrading isn’t just swapping boxes. Riverside County and City each require an electrical‑service upgrade permit plus a final inspection. Plans aren’t usually necessary for a single‑family home, but the installer must:

1. Match new service amperage to load calculations.

2. Bring grounding/bonding to current NEC standards (2023 edition).

3. Coordinate a utility disconnect/reconnect window.citeturn0search0turn0search2




Typical amp sizes:

• 100 amps – rare for new installs; limits future electrification.

• 150 amps – workable for modest homes without EV/Solar.

• 200 amps – today’s sweet spot; ready for EV, heat pump, solar, shop tools.









---

4 | Case Study—My Riverside Ranch, Re‑Energized

The Pain

• Flicker & Surge: Every A/C cycle dimmed lights across two rooms.

• No Capacity: Panel had zero free slots; induction range was off the dream list.




The Solution

I called Franco Brothers Electric after neighbors raved about “Robert’s honesty.” Another contractor tried to upsell me on a luxury smart panel for $3–5 k more. Robert explained the pros and the unnecessary cons, steering me to a standard 200‑amp upgrade—saving $4,500.

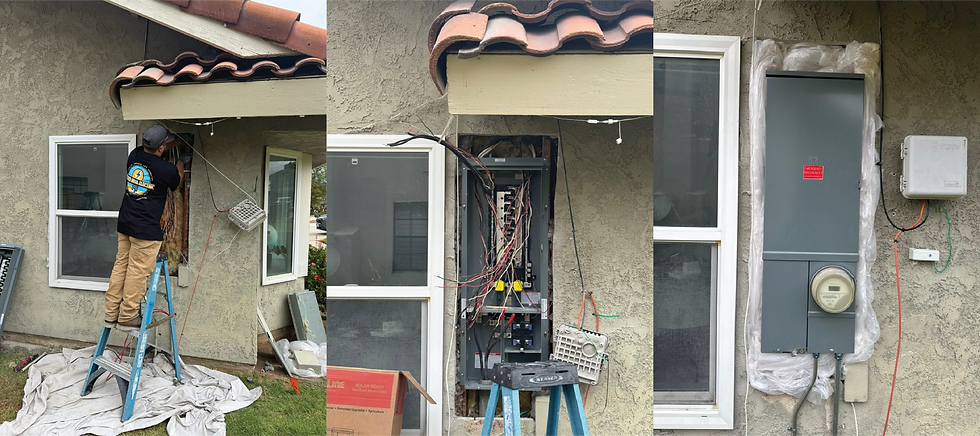

Installation Highlights

• Respect for the Home: Drop cloths, shoe covers, vacuum before leaving.

• Invisible Conduit Runs: Exterior EMT painted to match stucco; interior wiring hidden behind baseboard.

• Bonus Win: They removed an awkward ceiling light at no extra charge.




Life After Upgrade

• No dimming, no buzzing.

• Induction stove sizzles, breakers stay silent.

• Panel labeled and solar/EV‑ready for the future.

---

5 | Five Payoffs of a Modern Service Panel

1. Fire Prevention – New breakers detect arcs and ground faults in milliseconds.




2. Load Capacity – Power today’s gadgets and tomorrow’s electrification retrofits. A statewide study shows most single‑family homes jumping from 100 → 200 amps when adding EVs or heat‑pump HVAC.citeturn0search7




3. Insurance & Resale – Panels on the “recalled list” can block coverage or force price concessions at closing.




4. Efficiency & Monitoring – Optional smart breakers provide granular energy tracking for time‑of‑use rates.




5. Peace of Mind – One job, done right, protects your family for decades.




---

6 | Cost Breakdown & ROI

Component	Typical Range (Riverside)	Notes
200‑amp panel hardware	$450 – $850	Eaton, Siemens, or Square D
Labor & permits	$2,000 – $3,500	Utility coordination, inspection
Optional whole‑home surge device	$250 – $350	Saves electronics in lightning event
Smart‑panel upgrade	+$3,000 – $5,000	Only if you need branch‑level monitoring

ROI in real dollars: Avoid one insurance‑claim denial—or one fried HVAC board—and your upgrade pays for itself.

---

7 | Choosing the Right Electrician

1. License & Bonding – Verify C‑10 license with CSLB.


2. Local Permit Experience – Knows Riverside’s online portal and utility cut‑over schedule.


3. Transparent Options – Explains when a premium smart panel is worth it—and when it isn’t.


4. Clean Workmanship – Conduit lines straight, labeling legible, drywall patches seamless.


Franco Brothers Electric checks all four boxes—and adds a fifth: word‑of‑mouth trust. Nearly every job comes from neighbor referrals, not ads.

---

8 | FAQ

Q: Will my power be off all day? A: Usually 4–6 hours. Crews coordinate with the utility for a single daytime disconnect/reconnect window.

Q: Do I need 200 amps if I’m not buying an EV yet?

A: Think 10–15 years out. Upgrading once is cheaper than re‑upgrading later—and panel hardware cost difference is minor.

Q: Can I DIY to save money?

A: Not legally. Riverside requires a licensed electrician to pull the permit and schedule inspection.citeturn0search0

---

9 | Ready to Power Up?

Franco Brothers Electric

• Phone/Text: (951) 842‑0356

• Email: Robert@francoelectric.net

• Book Online: FrancoPower.com




Upgrade once. Relax for decades.

Call today for a free, no‑pressure panel assessment—and turn that dimming light into bright, dependable power.
